Level 4 APT Processor

Icam design and maintenance for more than 35 years anni APT CAM-APT-SURF processor. Born at the beginning of CNC technology and evolved over the years, the APT processor remains in the ICAM product portfolio to enable users to support and maintenance the APT existing programs. Compatible with many past APT processors sources, no longer supported, it can be ideal solution to ensure the continuity of your programs. Fully integrated on ICAM PSE product suite, CAM-APT-SURF uses Post-Processing and Virtual Simulation technologies ensuring the APT program portability to last generation machine tools.

Principal Benefits

Extended Support for Level 4 APT Instructions

CAM-APT-SURF supports basic functions of APT language, and advanced functions for creating and processing ruled surface, revolution tabulated and pockets.

Compatibility with major APT Systems

CAM-APT-SURF is compatible with APT sources of the main processors existing or past. APT programs of your database can be reused and modified to allow for further use.

Icam PSE Integration

CAM-APT-SURF uses the same ICAM PSE license system, ensuring easy integration into environments that already use Icam technology. The CLDATA binary format product by CAM-APT-SURF is fully compatible with the input generator of CAM-POST Post-Processor, ensuring easy integration and immediate use of the existing business post-processor. CAM-APT-SURF can leverage Virtual Machine technology during the post-processing. APT programs written more than twenty years ago can then be simulated on a last generation machine tool.

Multiplatform

CAM-APT-SURF is available on Windows and Unix platforms. APT users of UNIX systems are not required to change their method of editing and process on Windows machines, for which we have provided a simple visual system for the processor supervision. Vice versa, when necessary, you can move the entire archive of APT sources to the Windows platform with lower hardware management cost and better systems integration.

Technical Specifications

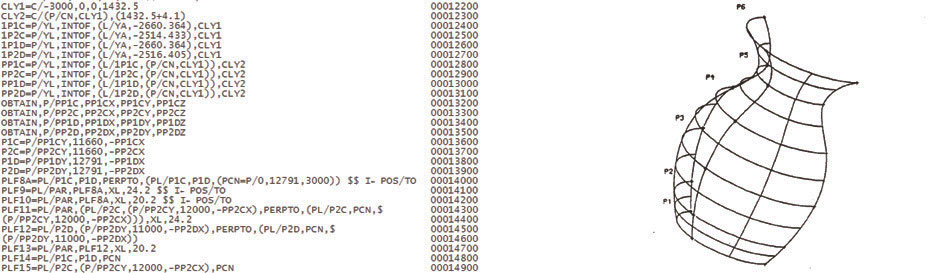

Geometry Definitions

POINT - LINE - CIRCLE - PLANE - CONE - CYLNDR - SPHERE - LCONIC - GCONIC - QADRIC - TABCYL - RLDSRF - PARSRF - REFSYS - ZSURF - HYPERB - PATERN - VECTOR - POCKET - BPOCKET - CURSEG - SPLINE - COMBIN - SCURV

Movement Definitions

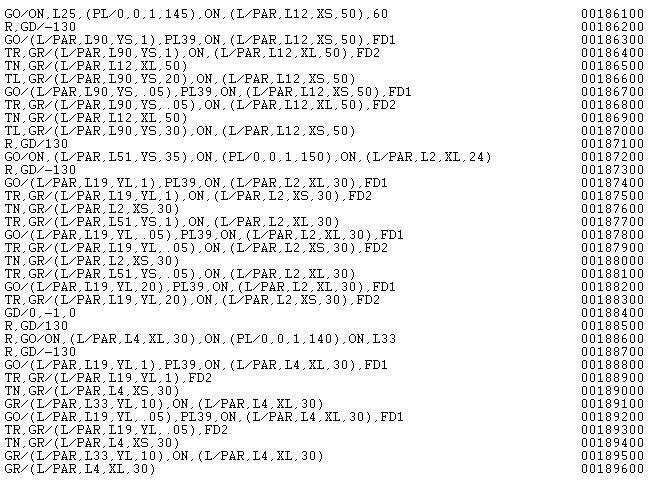

FROM - GOTO - GODLTA - GOLFT - GORGT - GOFWD - GOBACK - GOUP - GODOWN - GO - TO - ON - PAST - TANTO - TOLER - INTOL - OUTTOL - INDIRP - INDIRV - SRFVCT - PSIS - AUTOPS - TLLFT - TLRGT - TLON - PSTAN - INTOF - THICK - NUMPTS - INVERS - ZIGZAG - RETAIN - AVOID - THRU - CYCLE - MULTAX - TLAXIS - TRACUT - COPY - VTLAXS - DNTCUT - CUT - SCON - SMIL

Other Definitions

MACRO - MATRIX - CUTTER - MAXDP - UNITS - CLPRNT - CLDATA - SYN - PPOPTN - CONTRL

Special Features

- Support for the creation of parametric geometry
- Regional Milling

Compatibility with other APT Processor

HMS-APT, APT-AC, EX-APT, WS-APT

Hardware Platforms:

HP9000 (HP-UX), IBM (IRIX), SUN (Solaris 2), Windows 32-bit (XP SP2, Vista, 7, 8, Server 2003, 2008), Windows 64-bit (Vista, 7, 8, Server 2003, 2008, 2008R2, 2012)
